Isolated converter

The PDS_IC module features an isolated DC/DC converter, providing a secure and stable power supply for sensitive electronic systems, such as computers and subsystems. Key characteristics include:

• isolated power line with a configurable output voltage,

• isolated voltage and current measurements on the isolated bus,

• temperature monitoring for reliable operation,

• reverse polarity, over-voltage and over-current protection for safety,

• integrated EMC filter to reduce electromagnetic interference,

• transient protection to guard against sudden voltage spikes.

Parameter	Value
Input voltage	10–54 V
Input protection	Reverse polarity down to –54 V, overvoltage, overcurrent (with fuse), transients
Power	60 W
DC/DC converter output	Available options: 3.3 VDC 12 A, 5 VDC 12 A, 12 VDC 5 A, 15 VDC 4 A, 24 VDC 2.5 A
Output protection	Short circuit (continuous), overload, over-voltage, over-temperature, input undervoltage lockout
Current consumption on standby (no load)	7.8 mA
Quiescent current in shutdown	6.57 µA
Mass	74 g
Ambient Temperature (Operating)	0–40 ℃
Ambient Temperature (Non-operating)	0–60 ℃
Maximum Humidity (Operating)	up to 95%, non-condensing at 40 ℃
Maximum Humidity (Non-operating)	up to 95%, non-condensing at 60 ℃
Altitude (Operating)	–400 m to 2000 m

Fig. 10 Isolated converter with highlighted ports

The PDS_IC comes with a factory-assembled thermistor mounted on DC/DC converter. It also includes 2 pcs of 691340500002 without cables.

To operate IC and configure its parameters such as OCD level or temperature limit use commands in CANdle-SDK PDS commands and candletool for PDS

Isolated converter - High Power

This module was originally designed with the intention of integrating an NVIDIA Jetson platform, enabling high-performance processing in a compact form. However, its design is flexible and not limited to a single application. In addition to its primary purpose, the device can also serve as a reliable power source for other hardware, supporting external components with a power output of up to 150W. IC High power version functions identically to the other IC version.

Parameter	Value
Input voltage	12–54 V
Input protection	Reverse polarity down to –54 V, overvoltage, overcurrent (with fuse), transients
Power	150 W
DC/DC converter output	Available options: 12 VDC 13 A, 24 VDC 6.5 A
Output protection	Short circuit (continuous), overload, over-voltage, over-temperature, input undervoltage lockout
Current consumption on standby (no load)	7.8 mA
Quiescent current in shutdown	6.57 µA
Mass	74 g
Ambient Temperature (Operating)	0–40 ℃
Ambient Temperature (Non-operating)	0–60 ℃
Maximum Humidity (Operating)	up to 95%, non-condensing at 40 ℃
Maximum Humidity (Non-operating)	up to 95%, non-condensing at 60 ℃
Altitude (Operating)	–400 m to 2000 m

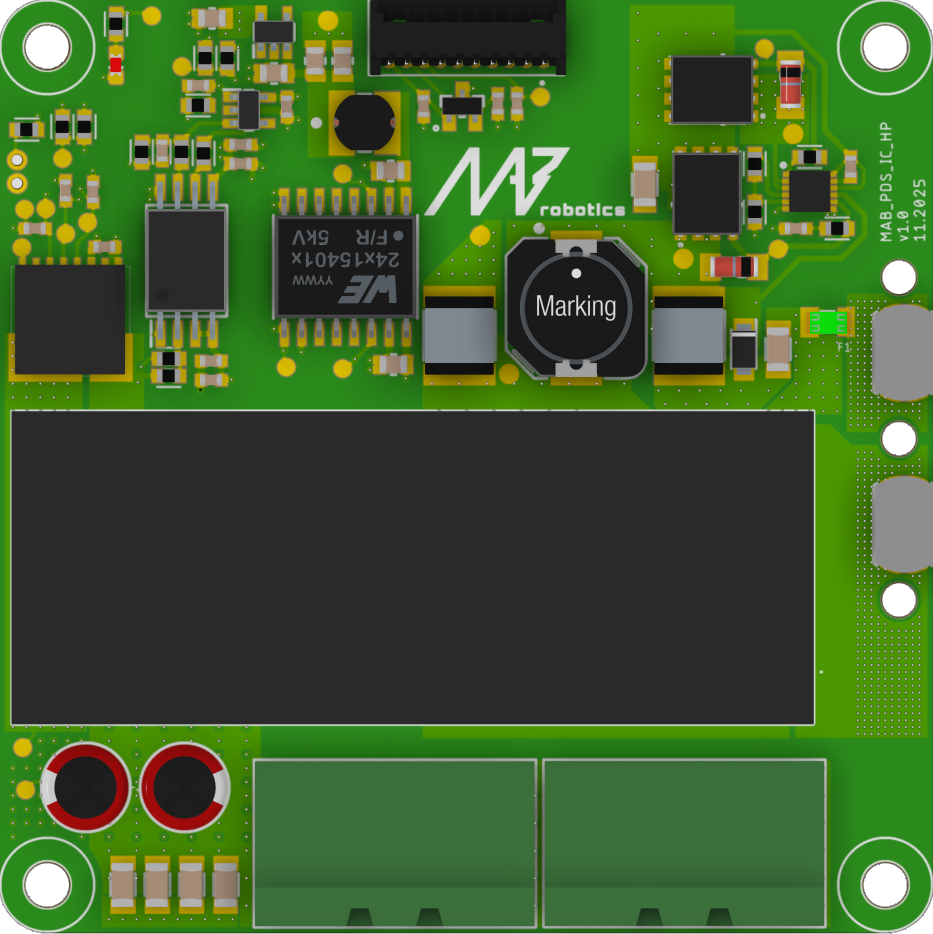

Fig. 11 Isolated converter High Power

Important

The Isolated Converter High Power is expected to generate increased heat; therefore, adequate cooling is recommended.
